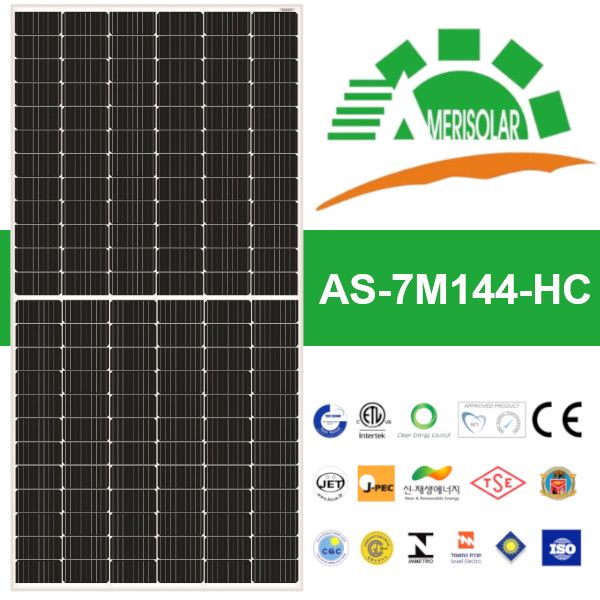

Amerisolar AS-7M144-HC-550W - 35 MM
| Brand: Amerisolar |
| Panels - Maximum Power (Pmax): 550 W |
| Panels - Open Circuit Voltage (VOC): 50.0V |
| Panels - Short Circuit Current (ISC): 13.94A |
| Panels - Voltage at Maximum Power (Vmp): 41.8V |
| Panels - Current at Maximum Power (Imp): 13.16A |
| Panels - Module Efficiency (%): 21.28 |
| Panels - Cell type: Monocrystalline PERC 182*91mm |
| Panels - Number of cells: 144 (6x24) |
| Panels - Connector: MC4 or MC4 compatible |
| Product Warranty: 20 Years |
| Panels - Linear Output Warranty: 30 Years |
ADVANCED PERFORMANCE & PROVEN ADVANTAGES
- High module conversion efficiency up to 21.28% by using innovative Half-cell design and Multi-busbar(MBB) cell technology.
- Low temperature coefficient and excellent performance under high temperature and low light conditions.
- Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.
- High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests).
- Potential induced degradation (PID) resistance.
CERTIFICATIONS
- IEC 61215, IEC 61730, CE
- ISO 9001:2015: Quality management system
- ISO 14001:2015: Environmental management system
- ISO 45001:2018: Occupational health and safety management system
SPECIAL WARRANTY
- 20 years product warranty
- 30 years linear power output warranty
